The "Restore Workflow from History" feature allows users to effortlessly revert to previous workflow versions from the history list. This powerful capability ensures that users can quickly recover from mistakes or return to a more effective version of a workflow with just a few clicks, providing enhanced flexibility and control.

Workflow Modes

When viewing a workflow, there are two distinct modes:

1. Current Mode: The standard editing mode for viewing and editing a workflow.
2. History View: Activated when the user clicks the View Edit History button to explore past versions of the workflow. In History View, the user can navigate between saved versions using the next/back arrows. The workflow cannot be edited in this mode and is read-only.

How to Use the Restore Workflow Feature

Switching to History View

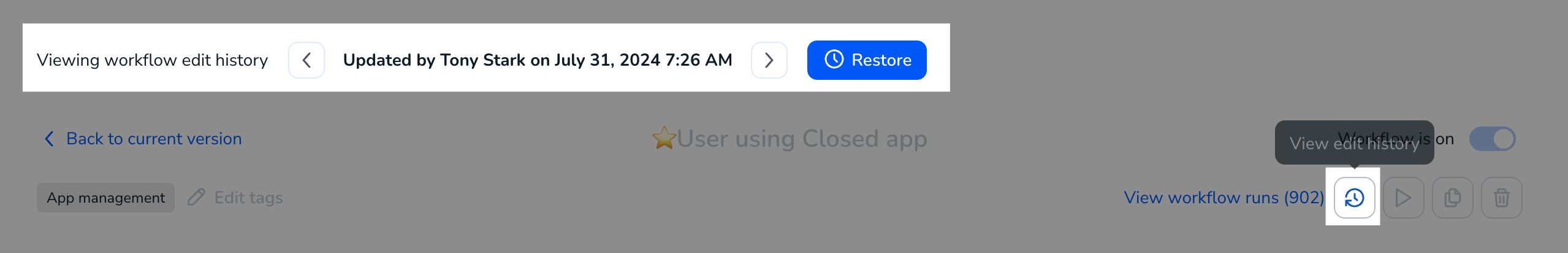

1. Click the View Edit History button to open a dialog displaying all previously saved versions, allowing the user to pick one to view. Once a version is selected, the chosen workflow version is displayed in History View.

2. The Restore button appears at the top of the specific workflow version the user is currently viewing.

3. You can navigate between saved versions using the next/back arrows.

4. Click the Restore button for the version you want to revert to.

5. A confirmation popup will appear, asking for confirmation.
6. Confirm your choice by clicking Restore in the popup.
7. When restoring a workflow, it will be restored as Inactive, and the user will need to set it to active if they wish to.

Exiting History View

If you want to exit History View without restoring, click the "< Back to Current Version" button.
